Instrumentation & Piping Valves

SAMI Instrument (SAMI) more than 50 years’ experience and expertise in instrumentation and high pressure valves manufacturing delivery high quality products and higher standard for instrumentation valves technology.
2015SAMIValves SAMI advancements in precision valves design and machining is the core of our strength. Company vast experience and knowledge in process applications have continually expanded, culminating in the company’s present situation of manufacturing the broadest range of instrument valve products available anywhere.

SAMI Instrument valves are able to cater for a wide spectrum of industries and applications. Determined to fulfil continuous assurance to providing customers with the complete product of choice, we now offers a comprehensive range of isolation valves (including double block and bleed, single block and bleed and mono-flange), instrument manifolds and customized accessories.

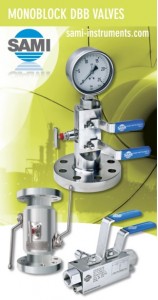

Monoblock DBB Valves

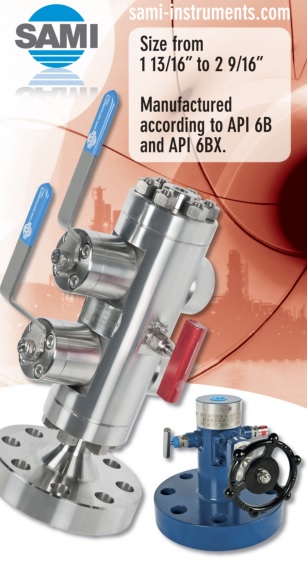

MonoBlockSAMIAPIcat-SAMI

Sami Instruments monoblock valves provide a smooth transition from process to instrumentation and piping systems in a single, compact assembly. Benefits include fewer leak points and reduced size and weight compared to traditional systems.

Both instrument and piping DBB are offered for various size and ratings.

Process interface in one compact ball/needle/ball valve assembly in • One piece forged body • Available configurations: compact block, block and bleed and double block and bleed • Flange connections in compliance with ASME B16.5 RF and RTJ; NPT connections in compliance with ASME B1.20.1 • Anti-blowout valve stems and needles • Ratings from 150 up to 2500 lbs • Stainless steel handle standard with full grip PVC sleeve • Stop pin • One-piece stem spindle • Finished ball for low operating torque and long life • Vibration resistant gland nut • Externally adjustable gland • Bore size 10 mm

Send us e-mail to webinq@salaty.com.my to request for the full catalogue of Monoblock DBB valves for ordering


Injection and Sampling

Some applications require to extract a sample of the process fluid or to inject a particular chemical directly into the process stream at full operating pressure and temperature.
To meet this requirement our range of Double Block and Bleed Valves can be fitted with either an Injection Quill or a Sampling Probe designed to meet the individual needs.
This kind of DBB Valves can be fitted with an integral check valve to prevent back flow into the process stream.

A bolted flange prevents the fitting from unscrewing during assembly.

Send us e-mail to webinq@salaty.com.my to request for the full catalogue of Injection and Sampling Valves and Manifolds for ordering.


Monoflanges O.S.& Y.

This product range represents a true technical and economical innovation in the management of the instrumentation analysis. Differently from the old system composed by big size block valves, safety and on-off valves, draining and sampling, these monoflanges allow to reduce costs and spaces. The monoflanges can be realized in traditional AISI 316 L as standard or exotic materials when required. They have compact dimensions with consequent reduction of assembling costs.

• Stainless steel construction as standard, optional: carbon steel LF2, Duplex, Super Duplex, Monel 400, Hastelloy C276, Inconel 625, Titanium, Incolloy 825
• Temperature rating GRAPHOIL packing from ・54ーC to + 510ーC ( – 65ーF / + 950ーF )

Send us e-mail to webinq@salaty.com.my to request for the full catalogue of Monoflange valves for ordering.


Ball Valves

Sami Instruments Simple Ball Valves are designed to withstand pressure ratings up to 10,000 psi ( 689 bar ). The Simple Ball Valves are suitable for the most demanding applications in the oil, gas and process control industries

Send us e-mail to webinq@salaty.com.my to request for the full catalogue of ball valves for ordering.


Needle Valve – Manifolds

Non—rotating Metal Stem Tip rotating Metal Stem Tip rotating Metal Stem Tip rotating Metal Stem Tip.

A non rotating stem tip is typically used in high cycle applications to extend the service life of the valve. Its purpose is to prevent galling of the valve seat in contact with the non-rotating stem, which is driven straight into it without rotating.

• Tee bar easy manoeuvrability with minimum effort
• PTFE packing standard, optional graphoil
• Stainless steel construction as standard, optional: carbon steel LF2, Duplex, Super Duplex, Monel 400, Hastelloy C276, Inconel 625, Titanium, Incolloy 825
• Colour coded functional identification
• Externally adjustable gland
• Variety of end connections
• Dust cap to prevent contaminations on the operating thread


Valve Manifolds

Three/Five Way Valve Manifolds 6.000 psi & 10.000 psi / Forged or Coplanar

The Three Valve Manifolds, that concentrate the functions of interception and balancing in a single block, are used with differential pressure transmitters. They are designed to allow both direct and remote mounting. Mounting brackets are available on demand.

The Five Valve Manifolds that concentrate in a single block the functions of interception, balancing and drain, are designed to allow both direct and remote mounting. Mounting brackets are available on demand

Send us e-mail to webinq@salaty.com.my to request for the full catalogue of Needle Valves and Manifolds for ordering.

Download Product BrochureI’m interested in this product
